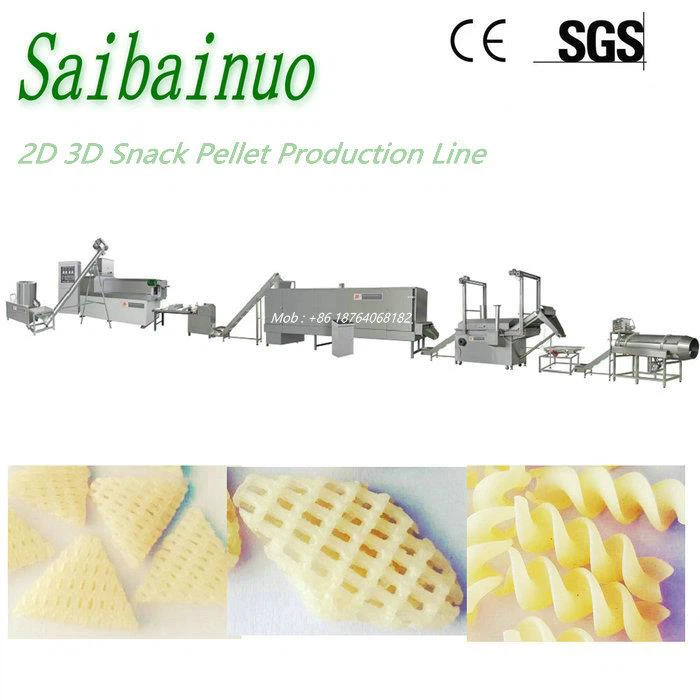

Introduction of Snack Pellet Processing Line
This kind of 3D Snack Pellet Processing Line mainly uses potato starch, corn starch, tapioca flour and corn flour as raw materials.
After extruding and curing by single screw extruders, the raw material was extruded with various shapes. By changing different molds, different kind shape snack pellet products such as shells, spirals, tubes, flakes, and strips can be produced, and then fried and seasoned for crisp taste
In addition, the 2D 3D Snack Pellet Processing Line is high automatic, it is easy to operate. The host is equipped with high and low pressure screws, which increases the use range of raw materials, reduces costs, and improves product quality as well. It is very popular with those small, medium and large food processing enterprises.
Equipment list
Mixer→ Screw conveyor→Extruder→ Cutting machine→Hoister→Drying Machine→Hoister→ Fryer→De oil→Hoister →Flavor Roller→Cooling conveyor→Packing Machine
Technical Parameters of fried snacks food processing line
Model | DLG100 | DLG150 |
Installed Power | 110Kw | 140Kw |
Production Capacity | 100Kg/h | 250Kg/h |
Dimension | 19000*2000*3500mm | 26000*2000*3500mm |
Layout
Voltage
In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers' Local voltage according to different countries.
Sample photos
This Processing Line can produce many kind shapes snack pellets by changing the mould.

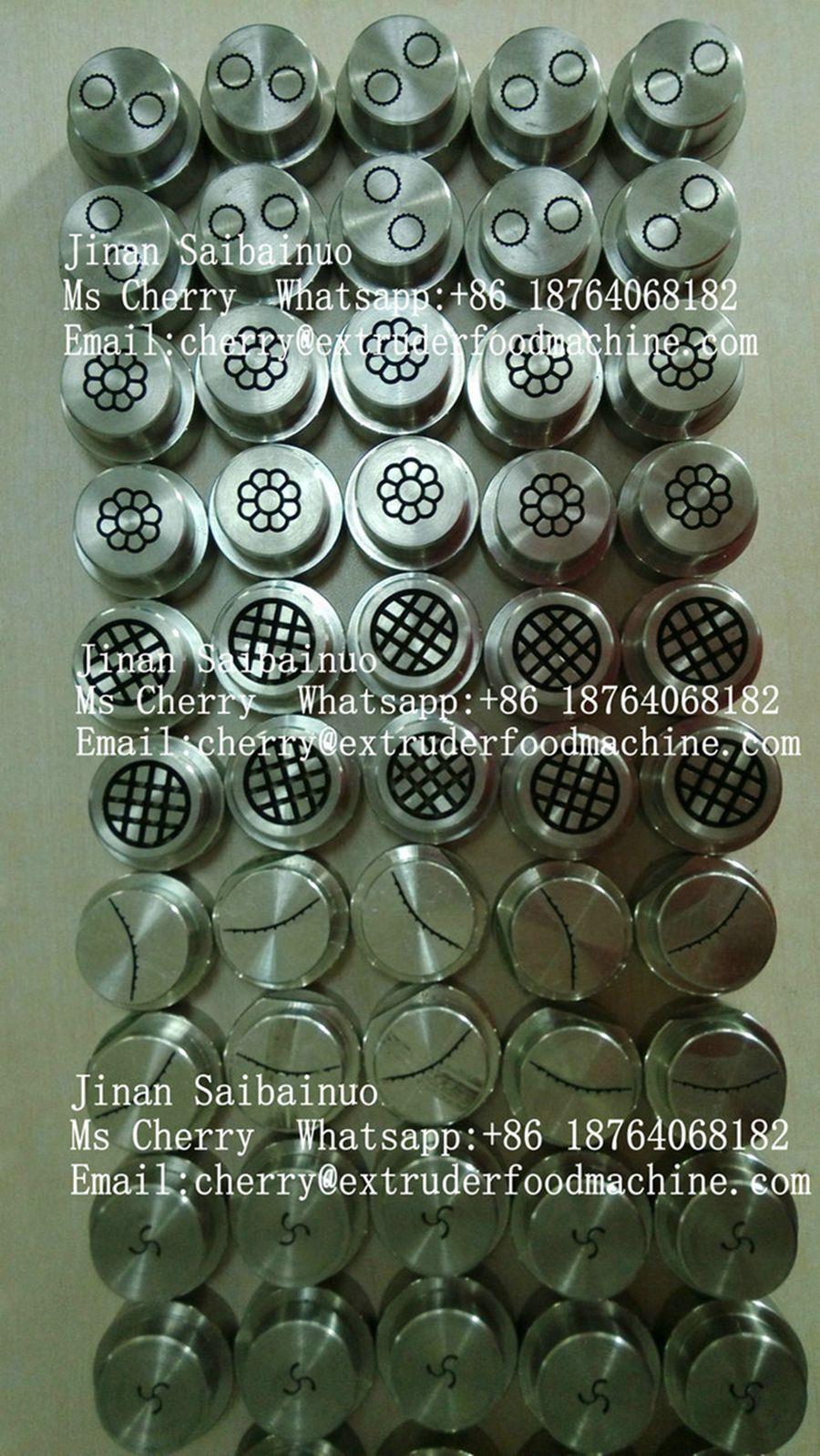

Mould for 2D 3D Snack Pellet Products

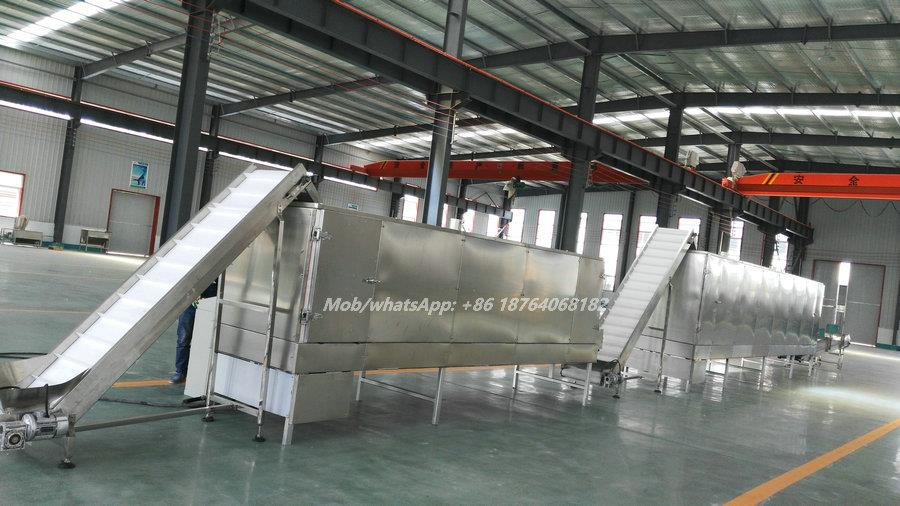

The 2D 3D snack pellet machine Processing Line in Workshop
Related Snacks Food Production Line
1-Puff Snacks/ Core Filling Snacks Production Line
2-Breakfast Cereals/ Corn Flakes Production Line
3-Bread Crumbs Production Line
4-Nutritional Powder/ Baby Food Production Line
5-Cheetos Kurkure Corn Curls Production Line
6-Bugles Chips Production Line
7-Macaroni Pasta Production Line
8-2D 3D Snack Pellet Chips Production Line
9-Pet Dog Food Production Line
10-Fish Feed Production Line
11-Pet Treats Dog Chews Production Line
Warmly welcome come to visit us, our company is in Jinan City,Shandong Province,China.
If any need or any questions for our machines, please send inquiry to us.
Mobile /Whatsapp: +86 18764068182
Email: cherry@extruderfoodmachine.com
Hot Tags: 3D snack pellet processing line, China, manufacturers, suppliers, price
