cheerios weetabix corn flakes breakfast cereals processing line extruded corn flakes machine
Corn flakes is a kind of crisp food, used grain flour as the basic raw material. By the processing line it is processed to flakes instant food which is pressed by particle. The outstanding feature is that it is rich in composite carbon compounds and dietary fiber. At the same time, corn flakes can not only strengthen much trace element, such as vitamins and minerals, but also add cocoa and sugar,such as honey,maltose, etc. After adding into coffee,milk,yogurt,or functional drinks, we can directly eat it. Children can also eat it as sweet and brittle leisure snack food.
Flow chart :
grinding→mixing→extruding→flaking→drying→hot air baking→sugar spraying→drying→cooling→packaging
Flow chart diagram:
Our engineer could design the layout drawing according to your dimension of the factory for the snacks food machine.

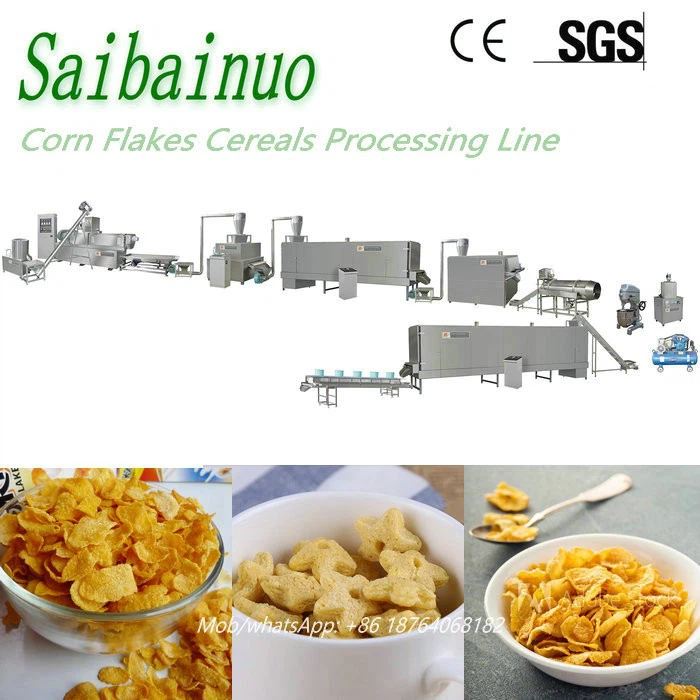

Final product:
Corn flakes, and variety shapes of breakfast cereals are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Equipment list in the corn fleaks breakfast cereals snacks food production line:
mixer→screw conveyor→twin screw extruder→air conveyor→flaking machine→air conveyor→dryer→hoister→hot air baking machine→flavoring drum and suger sprayer→dryer→cooling machine→packing machine

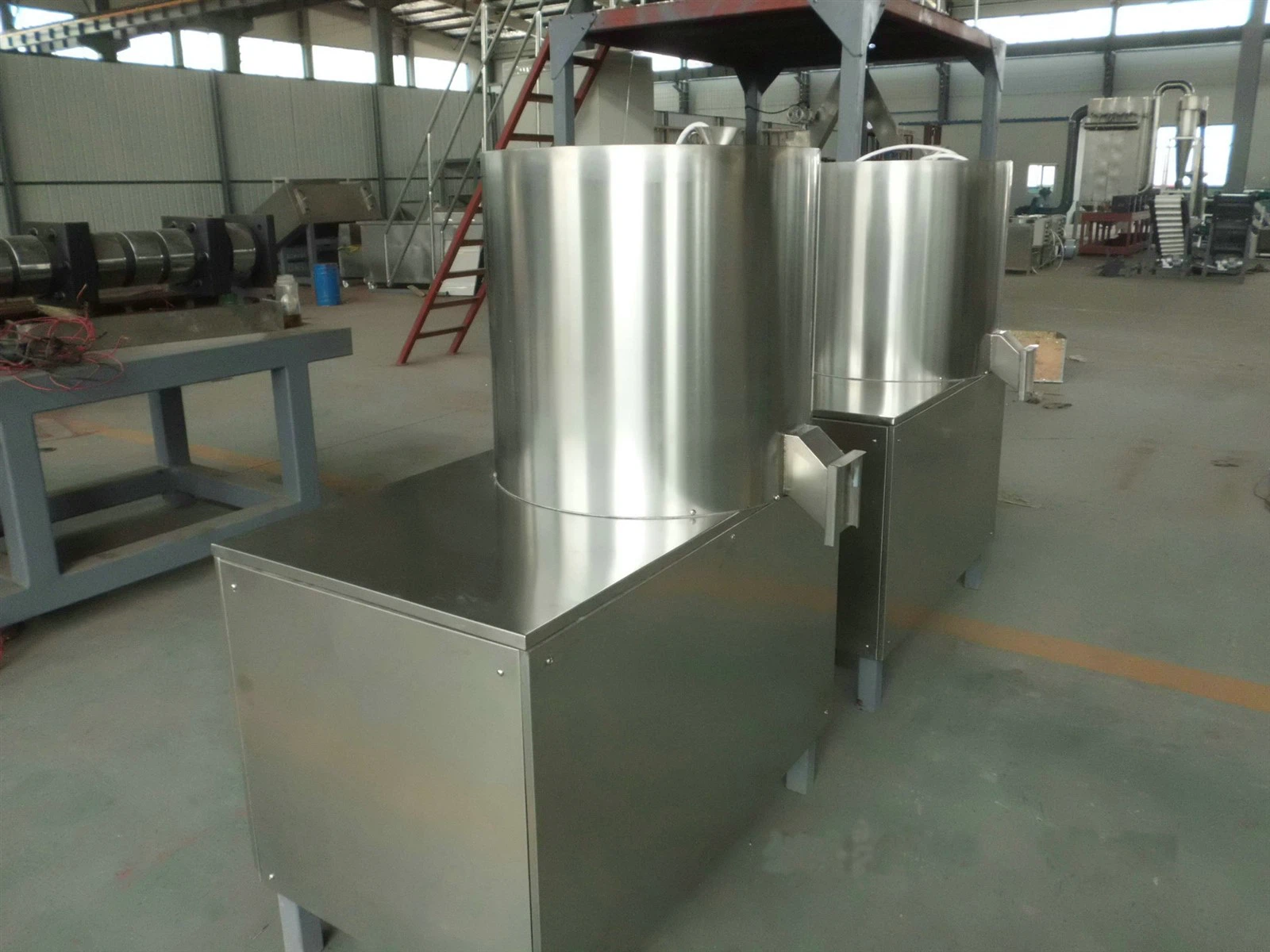

Name：Mixer
Usage：To mix the raw materials evenly, fast speed, no leakage.
Type：Vertical and horizontal type
Motor：3kw, 4kw, 7.5kw etc.
Capacity：20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material：stainless steel, carbon steel

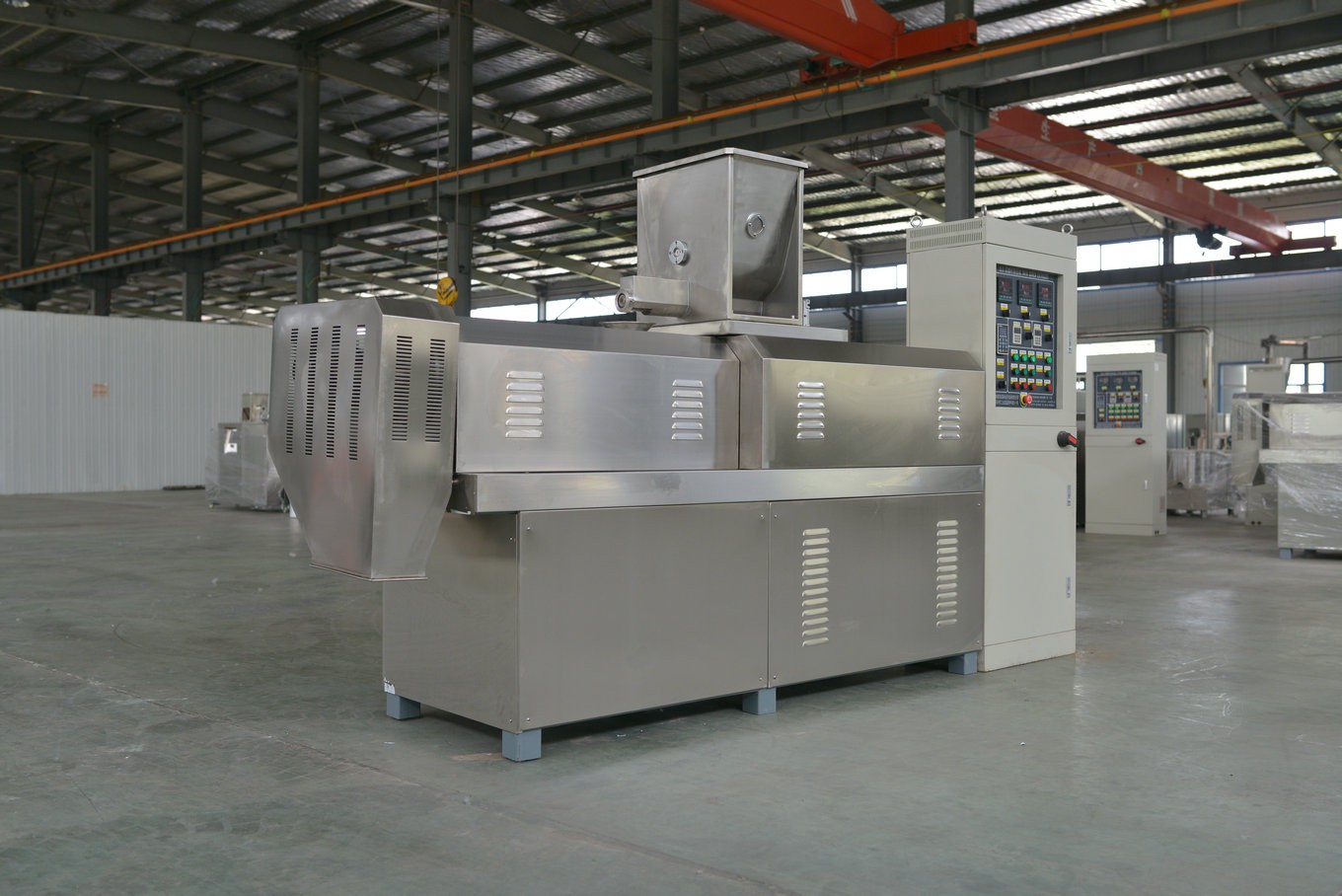

Name：Twin screw extruder
Usage：To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Model：DLG65, 70, 85
Motor：22kw, 37kw, 75kw
Capacity：100kg/h to 500kg/h
Material：Screw materials 38CrMoAlstainless steel, carbon steel

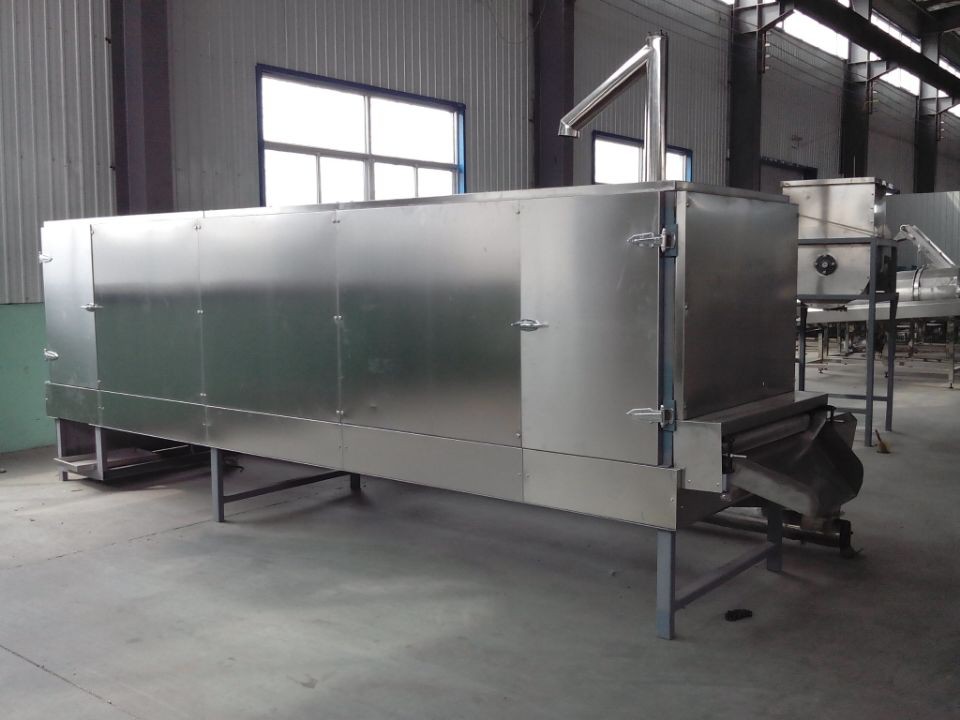

Name：Dryer (oven)
Usage：the expanded food go through the "s" passage, to be dried to increase the self life.
Type：electrical, steam, gas fired
Model：KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity：100kg/h to 10 ton/h
Material：stainless steel, carbon steel

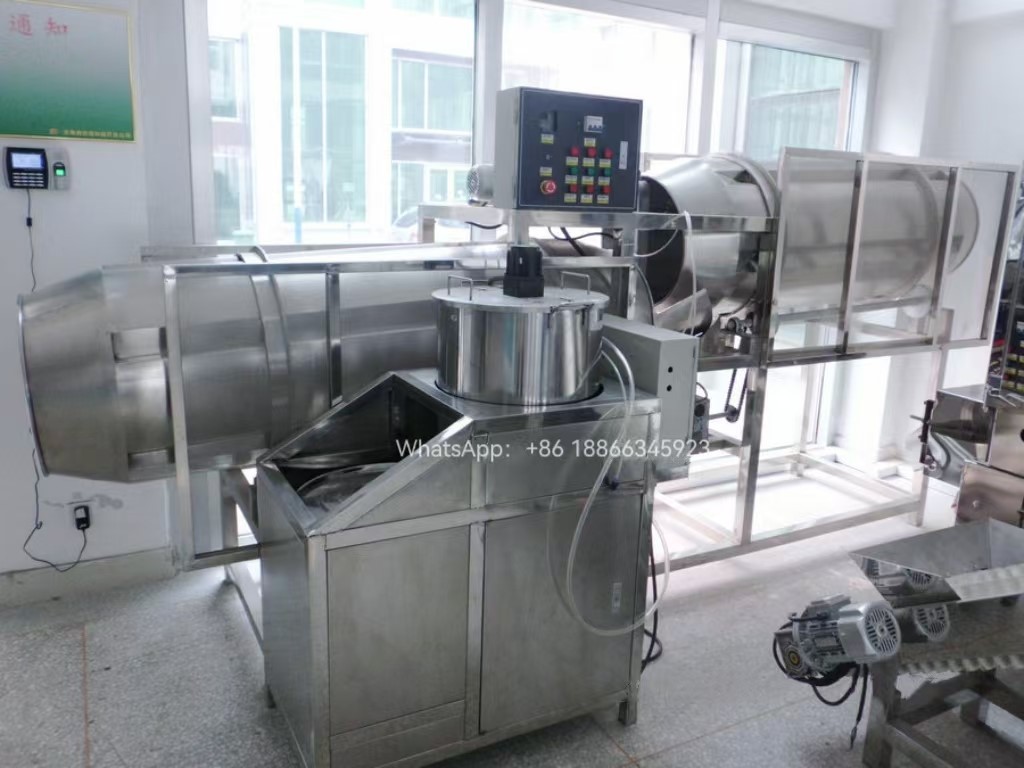

Name：Flavoring machine
Usage：To mix the sugar and spray the sugar on the surface of the corn flakes
Type：single and double flavoring drum
Motor：0.75kw
Capacity：100kg/h to 500 kg/h
Material：stainless steel
Features of Corn Flakes Breakfast Cereals Processing Line
A. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting.
B. Gearbox with automatic lubrication function, extending gear life.
C. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
D. Production line is full automatic, only need 1-2 persons to operate.
E. For the food capacity, we have small capacity and large capacity for your reference. You can choose the capacity according to your budget.
F. Customized voltage, we can produce the machines according to your country voltage, such as 220V, 415V, 400V etc.
FAQ
1. Who are we?
We are based in Shandong, China, start from 2004,sell to Domestic Market,Southeast Asia,Africa,South America,Mid East,Western,Europe,Eastern Europe,Oceania,Eastern Asia,North America,Central America.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Pet food / Fish food Machines, Artificial rice machines, Snack Food Machines,
Breakfast cereals Corn flakes Machines, Macaroni / Pasta Machines, Pellet Chips Machines,
Cheetos snacks Machines, Bread crumb Machines, Modified starch Machines,
Baby food machines and Packaging Machines etc.
4. Why should you buy from us not from other suppliers?
Jinan Saibainuo Extrusion Machinery Co., Ltd is the professional manufacturer of advanced effective extrusion machinery and designer of system integration. We have a number of patent and proprietary technologies.
Hot Tags: corn flakes breakfast cereals processing line, China, manufacturers, suppliers, price
