Instant Baby Rice Cereal, Nutritional Powder Production Line

The baby food making machine is mainly for corn powder, millet, rice powder, wheat flour, soya meal, lotus root powder, dates powder, sesame, etc extruding and inflating. Our double screw food extruders can cook the materials with high pressure and high temperature.

Send Inquiry

Chat Now

Twin screw extruder nutrition powder processing line for infant rice flour, sesame paste, and beans powder

Nutrition powder processing line is researched and developed by our company based on foreign advanced technology. The processing line transforms the method from raw grains cooking into high-temperature and high-pressure method, and then in extruded within five seconds. Meanwhile this processing line can denaturant the starch of the raw grains and be in favor of the absorption. It has a higher nutrition than the traditional craft. Many food manufacturers adopt this kind of food equipment at the present.

Firstly, the equipment that Nutrition Powder production is between 120-150kg/h.
Process flows: Raw material→mixing→extrusion puffing→air conveying→drying→crush→(packaging)
Equipment configuration: mixer→bulking machine→air conveying→three-layer roasting oven→crusher (packager)

Secondly, the equipment that Nutrition Powder production is between 200-260kg/h.
Process flows: Raw material→mixing→extrusion puffing→air conveying→drying→crush→(packaging)
Equipment configuration: mixer→bulking machine→air conveying→five-layer roasting oven→crusher (packager)

The above is supporting equipment, the equipment is cover an area of an area small, flow line length 12-14m, width 2.5m, automation high strength, easy to operate and maintenance.
Remark: Crushing equipment belong to outsourcing machine, extra paid

Extruder model	Main power	capacity	size	weight
SLD65	18kw/22kw	120-150kg/h	2.6x0.9x1.7m	1200kg
SLG70	30kw/45kw	200-260kg/h	2.8x0.9x1.7m	1300kg
SLG85	75kw/90kw	400-600kg/h	3.4x1.0x1.9m	1800kg

Flow chart of baby food making machine

pet food line

Extruder details

Instant Porridge Nutritional Flour Baby Food Making Machine

Machine parts details

Instant Porridge Nutritional Flour Baby Food Making Machine

Our service

Before sale services:
1.Provide the free consultation of baby food making machine
2.Provide the standard device and the flow chart
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
After sale services:
1.Oversea install and debug the equipment.
2.Train the first-line operator.
3.Provide the basic formula

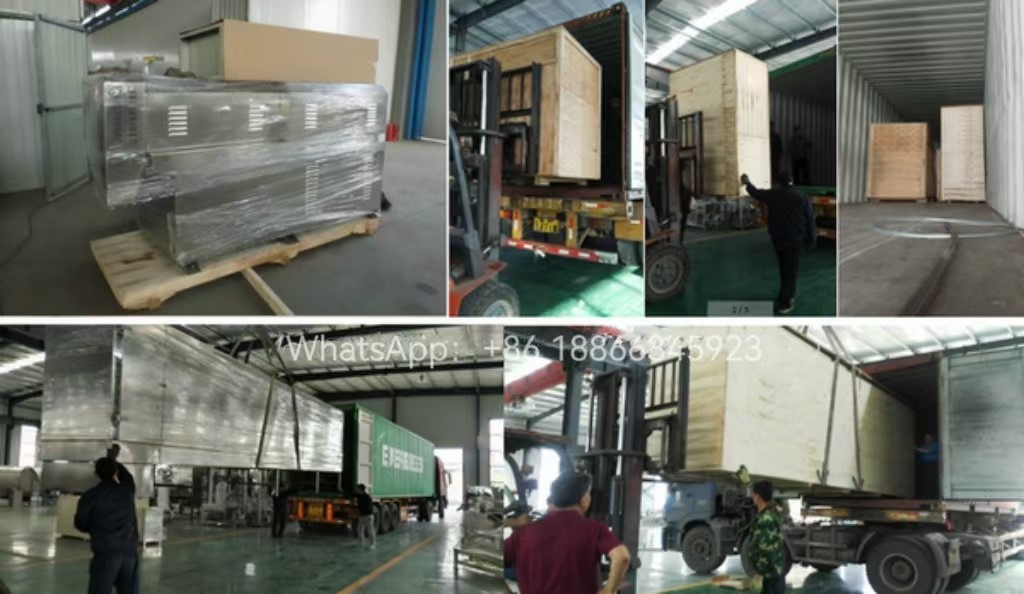

Packaging & Shipping

1. We will pack all necessary machines into wooden cases of baby food making machine. For drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.
2. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.
3. If need containers, our trucks will take the containers from port to our factory for professional and safely loading, and then return to port for shipment.
