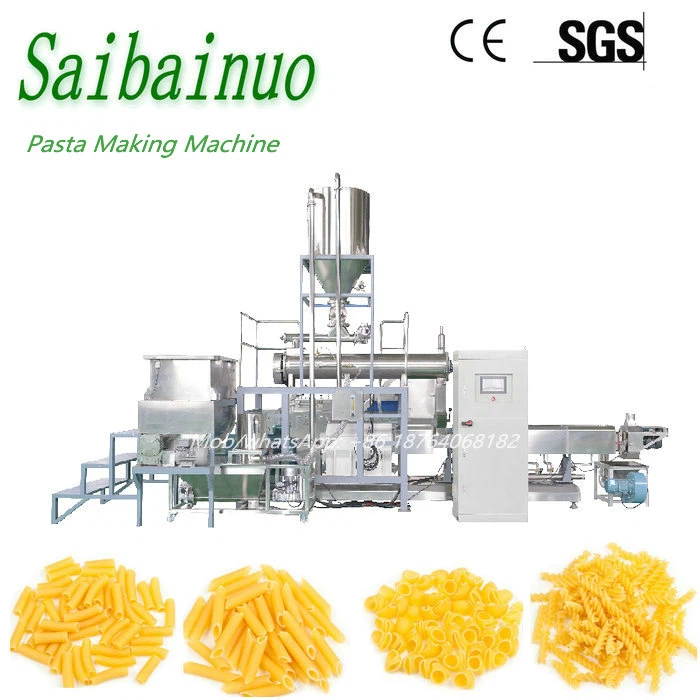

1. Macaroni pasta production line description
This series of Macaroni pasta production line have 3 models to product many kinds of food, such as spaghetti, shells shape crisp, tremella shape crisp, pentagon shape crisp, cat ear shape crisp, macaroni, crust of cooked rice, chromium winding noodle. And we can also make the model according to customers' requirements.

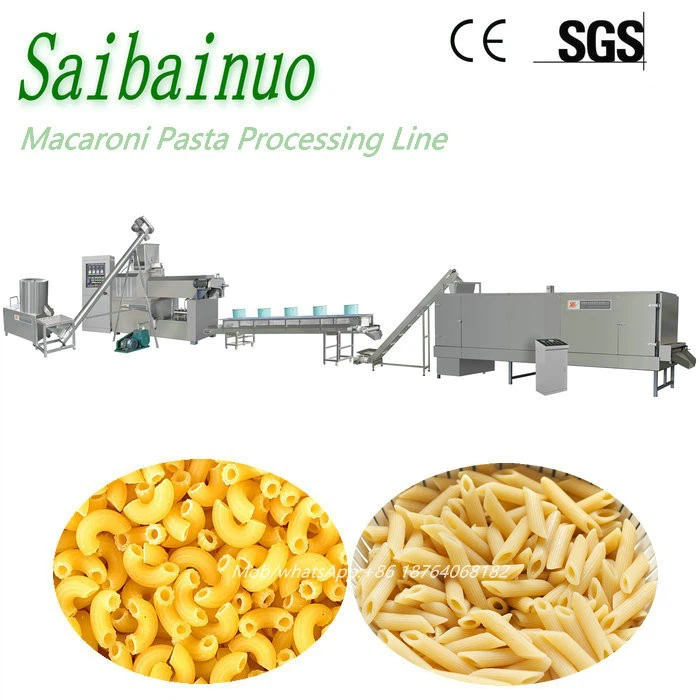

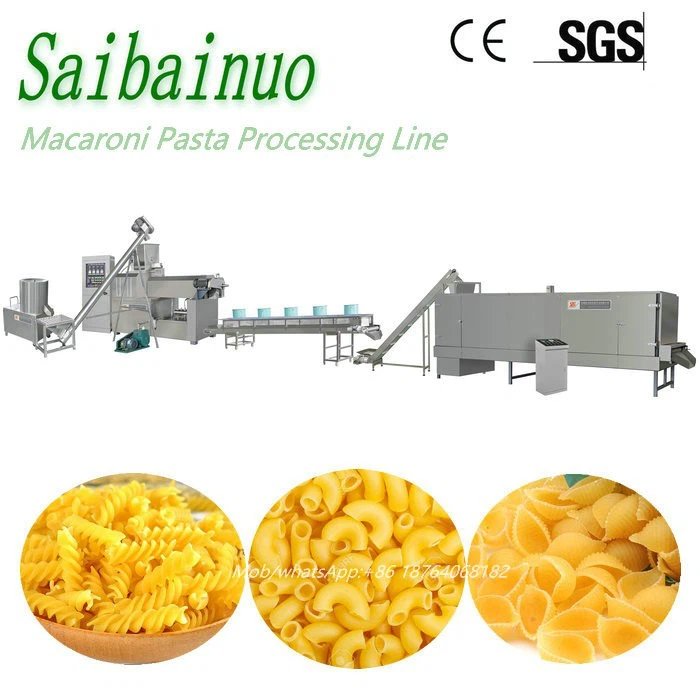

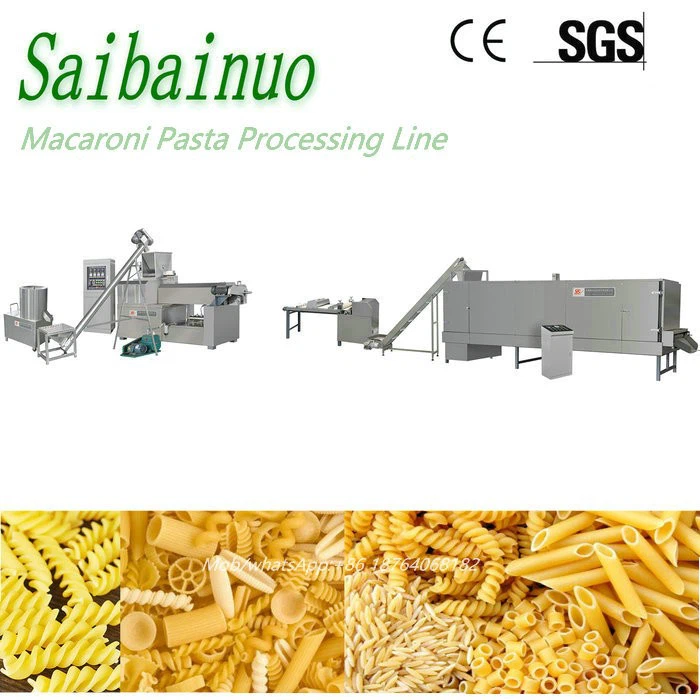

2. Macaroni pasta production line Flow chart:
Raw material→ Mixing→ Screw conveying → Extruding → Cooling conveying → Drying → Cooling conveying
3. Features:
(1). The pasta machine has the advantages of reasonable design, high degree of automation and precise control.
(2). The main body material is stainless steel, which is easy to clean.
(3). The screw material is 38CrMnAl, which is wear-resistant.
(4). Our project is a turnkey project. We will send engineers to your factory, install and debug the equipment, and train your operators.
4.Specification
|
Model |
Power |
Capacity |
Dimension |
|
DLG110 |
130KW |
100-120KG/H |
25X3X3M |
|
DLG150 |
230KW |
280-300KG/H |
35x4x4M |
5.Sample
|
1.Feeding system: |
1.0.75KW motor drive the screw in the feeder,then move the material into the |
|
2.Extruded system: |
75KW main motor drive the gear box,then run the screw.The screw thread is loose then tight.The pressure of barrel will be |
|
3.Heating and cooling system: |
There are some heating ring and cooling water jacket outside of the barrel.Thermonuclear measure the barrel temperature all the |
|
4.Vacuum system: |
Besides above system,we also have new design with this machine--Vacuum Pump |
|
5.Cutting system: |
1.1KW motor drive the knife block with the knife, then cut the pasta out of the mold into various shapes. |

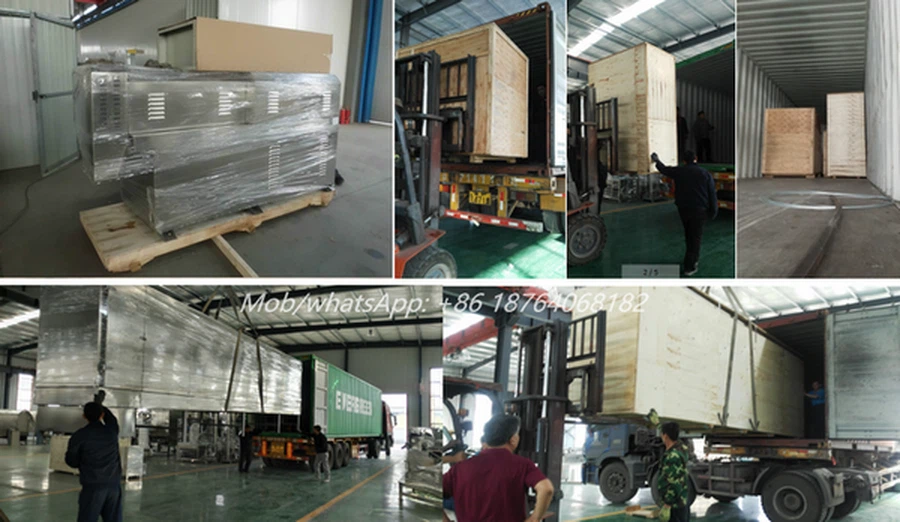

6.Packing & Delivery
wholesale macaroni production line
1.Firstly packed with plastic bags
2.secondly wooden packing cases
3.finally putting the wooden cases into the container if delievered by sea
