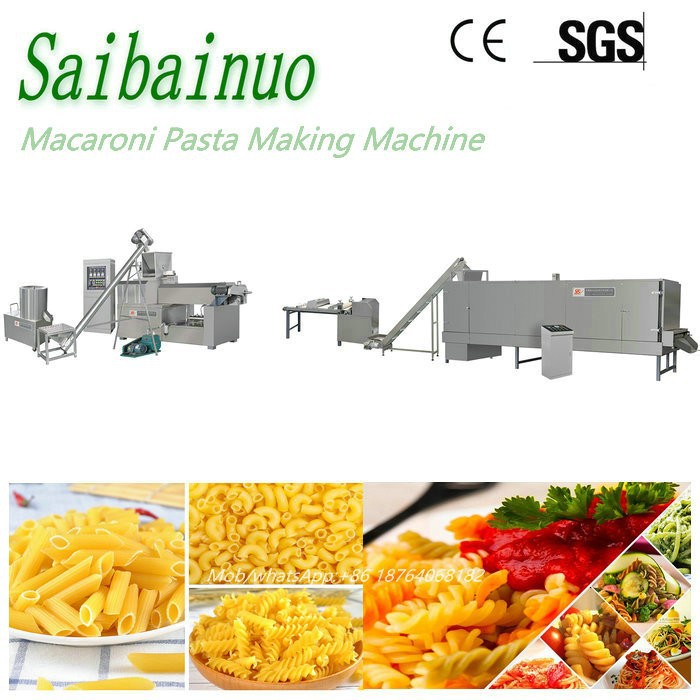

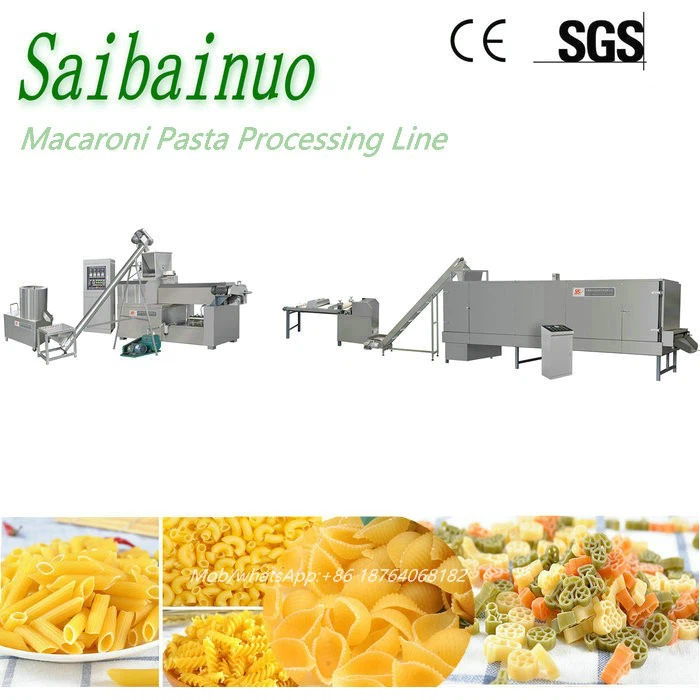

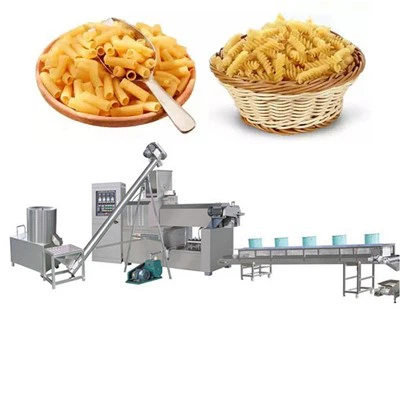

Multifunctional Macaroni Production Line:
This production line uses flour, potato starch, and other raw materials. After extrusion molding and maturation, the pasta is extruded from a mold and cut. It can produce 3D products with novel shapes, such as macaroni, spaghetti, shell pasta, spiral pasta, square pasta, and round pasta. After drying, it can be made into various flour-based foods with good texture and unique flavor.
Process Flow:
Raw material preparation → Mixing → Extrusion molding → Cutting → Drying → (Packaging)
Equipment Configuration:
Mixer → Screw conveyor → Single screw extruder → Cutter → Elevator → Dryer → Cooling conveyor
Main Features of the Macaroni Equipment:
The single screw extruder uses the commonly used basic model DLG-100 single screw extruder, mainly used for producing various pasta, fried foods, rice noodles, macaroni, spaghetti, and other pasta products. It offers stable output and simple operation. 3000 refers to the screw length, and 100 refers to the screw outer diameter.
This machine consists of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system. It employs advanced screw extrusion technology, using high temperature and pressure to mature and expand the material, resulting in a single-step molding process. The main unit uses variable frequency speed control to ensure production stability. The products are available in a rich variety of colors, types, and have exquisite, natural, and realistic appearances with a fine texture, and utilize a wide range of raw materials.
1. Mixer: separate or add additives to the main materials (flour, corn flour, rice flour, starch, etc.), mix the water fully and evenly.
2. Extruder: Produce the products with long strip, sheet and other shapes can be produced by extrusion. Products with different width and thickness can be changed by changing the mold.
3. Cutter: cut off the semi-finished products from the expansion press.
4. Dryer: dry the products. The heat source can select electric energy, fuel oil and gas according to the specific situation.
5. Cooling Conveyor: it cools the materials after passing through the oven, which is convenient for packaging.
6. Packaging machine: vertical packaging machine or combined computer cooling packaging machine, which can selectively pack different bags.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 25-60 days. Generally, the fixed voltage of 330V,50Hz is delivered in about 30 days, and other voltages in about 50-60 days. Days will increase if production is large.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A:30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment
Q5:Guarantee?
A: Within 24 months
Q6: Can you provide food or feed formula?
A:We can provide basic formula for produce the food etc. And help customer to produce new products according to customer's formula.
Q7: What is the material of the machine?
A: Stainless steel, especially parts contacting with materials, conforming to food grade.
