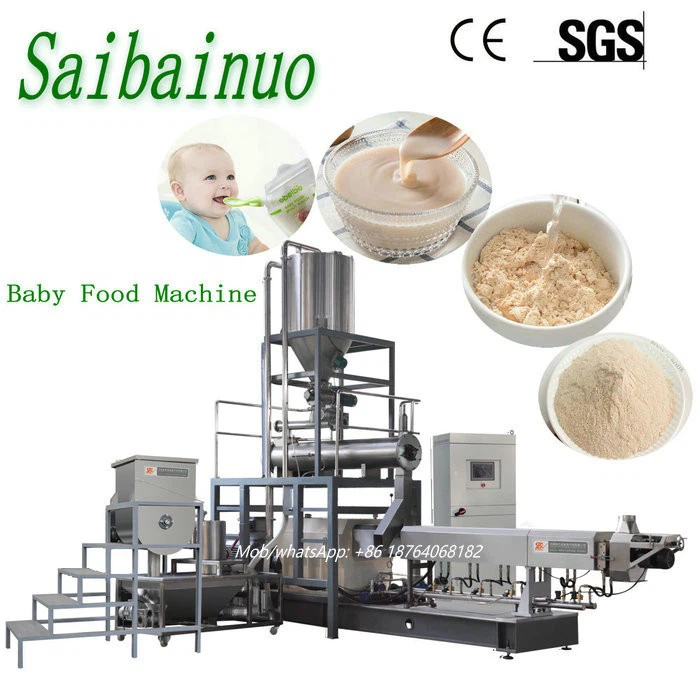

Automatic Baby Nutritional Power Food Making Machine

Nutrition Powder Processing Line Nutritioanl Powder Extruder Machine Nutrition Rice Powder Production Line

1.Nutrition Powder Making Machine Introduction
Nutrition Powder Food Production Line uses rice, corn, beans and all kinds of grains as raw materials.
Through extruding, inflating, drying, crushing and mixing, it could produce many kinds of nutrition powder, such as baby rice powder, sesame paste, beans milk powder and so on. This line could finish all the process automatically from the feeding to the end. It has features of easy operation, no leak of powder dust, sanitation, energy-saving and adding all kinds of raw materials and nutriment easily.

2.Raw material: corn, rice, beans and all of grains.

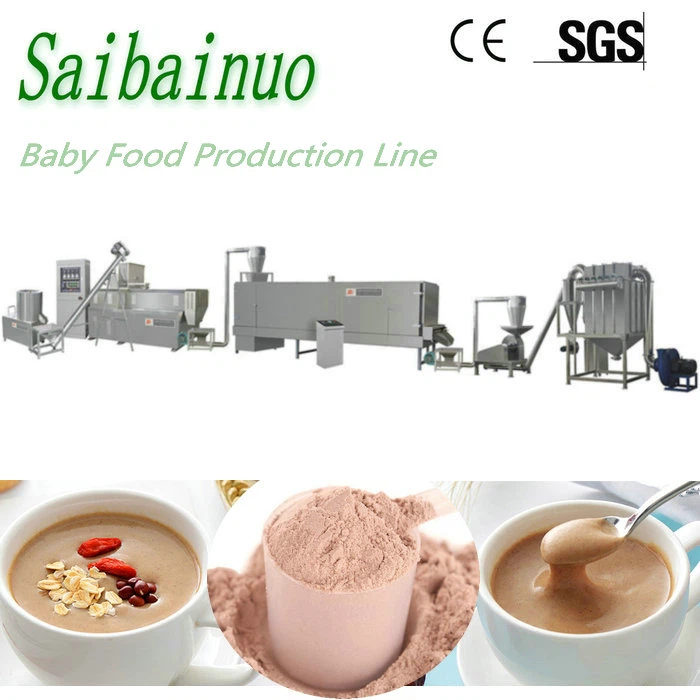

3.Flow chart of nutrition powder making machine:
mixer-screw conveyor-extruder-air conveyor-dryer-air conveyor-milling machine

4.Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

5.Machines Materials:All the nutritive powder making machine are made by stainless steel, this line is with reasonable designand with high automation; the screws are made by alloy steel, with building block system structure a nd self-cleaning function

6.The technical specification of nutrition powder production line

Mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW

Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer..

Screw Conveyor

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution;

Twin-screw Extruder

Dimension(m): 2.6×1.0×1.3

Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.

Dryer

Dimension(m): 5.4×1.3×1.8
Heating Power:27kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:

The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.

Our services:

1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1).Select equipment model;
2).Design and manufacture products according to clients' special requirement;
3).Train technical personnel for clients.

2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1).Pre-check and accept products ahead of delivery;
2).Help clients to draft solving plans.

3. After-sale services:
Provide considerate services to minimize clients' worries.
1).Assist clients to prepare for the first construction scheme;
2).Install and debug the equipment;
3).Train the first-line operators;
4).Examine the equipment;
5).Take initiative to eliminate the troubles rapidly;
6).Provide perfect service;
7).Provide technical exchanging.

We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
