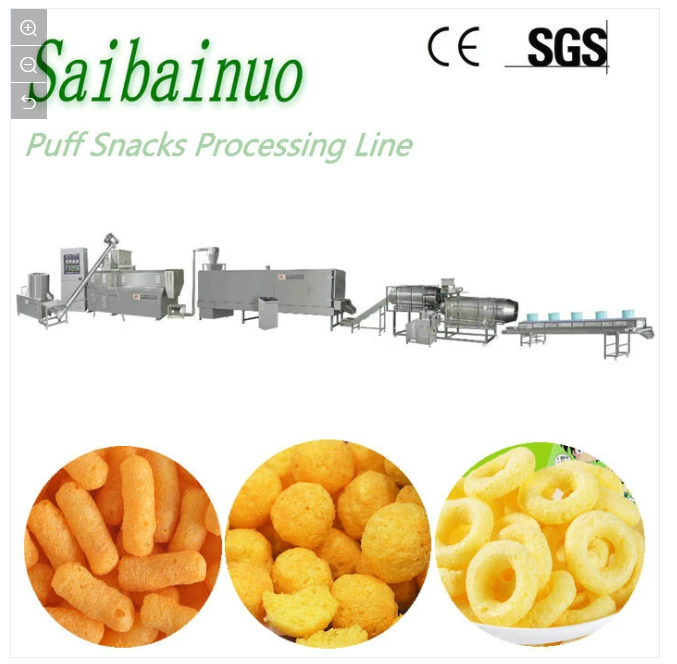

Flow chart of Automatic Puffed Corn Snacks Extruder Making Equipment:
grinding→mixing→extruding→drying→flavoring→cooling→packaging
We will design the corn puff snacks machine processing line layout according customers factory size
and structure before the order
Cereals Snacks Puffs Chips Samples for reference
Raw material of Automatic Puffed Corn Snacks Extruder Making Equipment:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder
(flour) or grits form.
Equipment list in the snack food production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer
→cooling machine→packing machine
|
Name
|
Mixer
|
|
Usage
|
To mix the raw materials evenly, fast speed, no leakage.
|
|
Type
|
including Single axle and double shaft mixer
|
|
Motor
|
3kw, 4kw, 7.5kw etc.
|
|
Capacity
|
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
|
|
Material
|
stainless steel, carbon steel
|
|
Name
|
Twin screw extruder(wet type/dry type)
|
|
Usage
|
To extrude the raw materials and make them to the required shape and size of the snack food pellets by mould
|
|
model
|
DSE65, 70, 75, 90, 95, 120, 135
|
|
Motor
|
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
Screw materials 38CrMoAl
stainless steel, carbon steel |
|
Name
|
Dryer (oven)
|
|
Usage
|
the expanded food go through the "s" passage, to be dried to increase the self life.
|
|
Type
|
electrical, steam, gas fired, diesel fired heating type
|
|
Motor
|
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel, carbon steel
|
|
Name
|
Flavoring machine
|
|
Usage
|
To mix the oil and flavors on the surface of the fish feed
|
|
Type
|
single and double flavoring drum
|
|
Motor
|
0.75kw
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel
|
|
Name
|
Packaging machine
|
|
Usage
|
To pack the snack food with required weight
|
|
Flowing Process
|
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
|
|
Weight range
|
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
|
|
Material
|
stainless steel, carbon steel
|
|
Type
|
Automatic
|
Our company is in strict accordance with the industrial standards for cutting, bending, welding, strict
control of process quality, check whether the machine is qualified before delivery, to ensure that every machine for the customer is qualified artware selected carefully by our company.
