Cheese Ball Making Machinery Plant Puffed Corn Snack Make Machines Line Equipment
1.Puffed corn snack make machines can do the works of raw materials preparation,extrusion,core filling,shaping,cutting and flavoring at a time,which is high automatic degree.This production line has the advantages of more machines choice,flexible and diverse configurations,wide range of raw material application,numerous in products variety and easy operation.It can make the puffed food,such as core filling snack food,filling biscuit,nutrition breakfast,corn flakes etc.After being puffed,the products are crispy, easy to digest and unique taste.They are the perfect leisure food for consumers.
2.The screws are made by alloy steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
3.The forced lubrication system, by guaranteed equipment transmission longer life.
4.Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.
5.Voltage : Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
You just need to change different shapes of die in the outlet of extruder machine. Then you could get various shapes of puffs snack. The shape of snack could be corn ball, corn bar, star, flower, ring, letters, numbers and so on. And of course, we would offer you 4 dies freely with the extruder machine together.

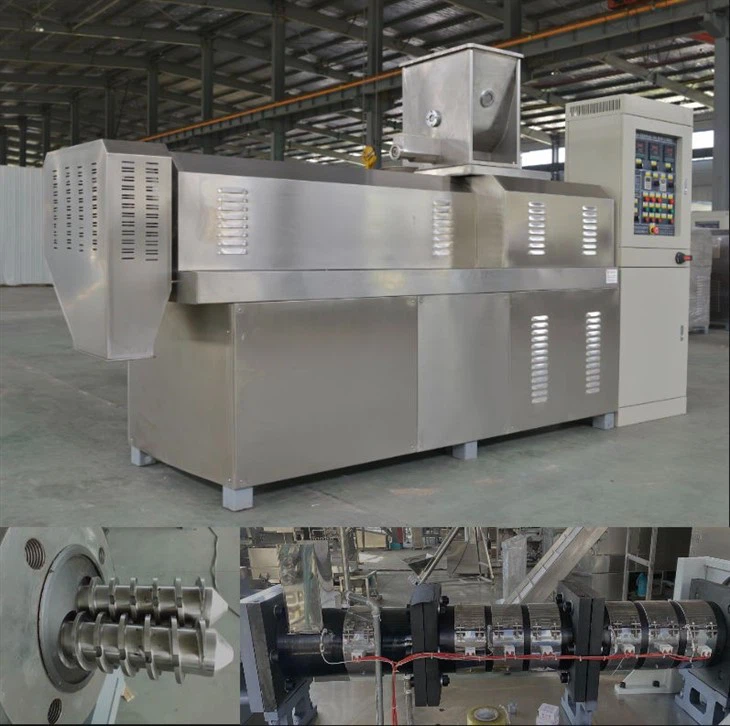

Every part of the puffed snack extruder production line
(1) The Mixer: Mix the raw materials with water
(2) The Screw conveyor: Transport the raw materials to the twin screw extruder
(3) The Extruder: Extruding the raw materials
(4) The Hoister: To improve the products
(5) The Dryer: Drying the extruded products
(6) The Flavoring line: Flavoring the puffed snack food
(7) The Oil Sprayer: The part of the flavoring line
(3) The Extruder: Extruding the raw materials
(4) The Hoister: To improve the products
(5) The Dryer: Drying the extruded products
(6) The Flavoring line: Flavoring the puffed snack food
(7) The Oil Sprayer: The part of the flavoring line

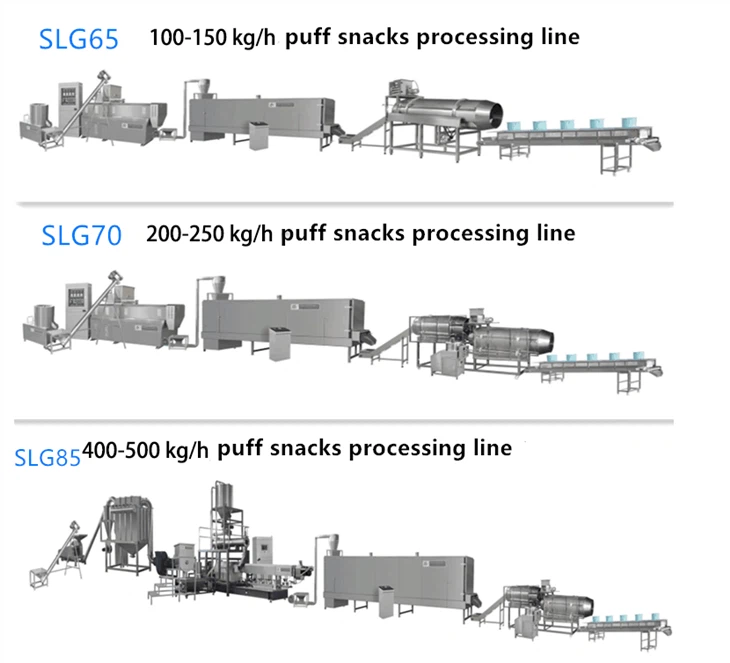

Parameters of puffed snack extruder
|
Model |
Installed power |
Power consumption |
Output |
Size |
|
SLG65 processing line |
150kw |
110kw |
100-150kg/h |
20000*1200*2200mm |
|
SLG70 processing line |
160kw |
120kw |
200-250kg/h |
23000*1500*2200mm |
|
SLG85 processing line |
190kw |
140kw |
450-500kg/h |
25000*3500*40000mm |
Pictures of our factory
