Good quality kurkure/corn curls/nik naks snack machines are special extruded snacks with crunchy and great taste.They are made by a special extrusion processing.The corn grits are moisturized in the flour mixer with water and fed to the Rotary Head Extruder.By adjusting the raw materials, temperature and pressure etc.Due to the two rotary plates,corn grits are squeezed and twisted to curls shapes.The cutting knifes can cut into required lengths.The Kurkure/Cheetos can be fried in cooking oil or toasted in oven and then cooled before flavoring.Seasoning is sprayed on the surface to achieve different favorable taste.
2. Function: It has features of easy operation, fully automatic, saving energy and easy to add all kinds of raw materials and nutriment.
3. Voltage(kurkure machine) : Three phases: 380V/50Hz, Single phase: 220V/50Hz. we can make it according to customers' Local voltage according to different countries.
4. The forced lubrication system: by guaranteed equipment transmission longer life.
6. Raw materials(kurkure machine): rice/wheat/corn or other grains powder.
7. Capacity: 100--200kg/h( Good quality kurkure/corn curls/nik naks snack machines)
Flow chart
1. Mixer: add a certain proportion of water into the raw material corn flour, Rice noodles, soybean flour, fish meal, meat meal, cereal flour, additives, etc. to fully mix them evenly.
2. Screw conveyor : Using an electric motor as the power for spiral conveying, the mixed raw materials are transported to the feeding hopper of the twin-screw extruder. This device is convenient and fast for feeding, saves labor, and has high efficiency.
3. Extruder: kurkure is a special type of extruded snack that is very crispy when chewed in the mouth. After mixing corn grits with a certain proportion of water, they enter the rotary head extruder. Under the squeezing and rubbing action of two brass turntables in the extruder, the corn grits form irregular twisted shapes. Then cut it into the required length products with a cutting knife.
4. Conveyor: Transport the produced feed pellets to a multi-layer drying equipment.
5. Multi layer oven: The oven is divided into electric oven, fuel oven, gas oven, and steam oven. The temperature is adjusted between 0-150 degrees by the control cabinet. The interior of the oven is made of stainless steel mesh belt, which ensures smooth transportation and low failure rate. Qiduo puffed food undergoes multi-layer S-shaped track circulation, drying Qiduo food to a safe moisture content and increasing its shelf life.
6. Spray seasoning line: the oil injector sprays oil, essence, etc. The seasoning cylinder includes octagonal cylinder, cylinder, lifting single cylinder and double cylinder seasoning line. According to the output and product nature, the oil is sprayed on the food surface, and the minced meat and spices are sprayed evenly.
7. Vibration screen: Screen out excess external materials and particle debris to ensure quality while ensuring the reuse of raw materials.
8. Packaging machine: Manual sealing machine and automated packaging machine can be used. For specific details, please call the manufacturer.

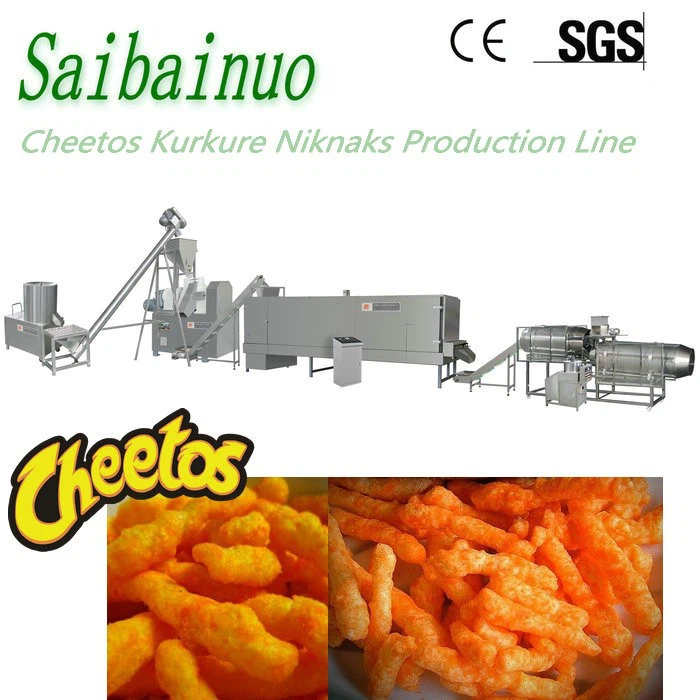

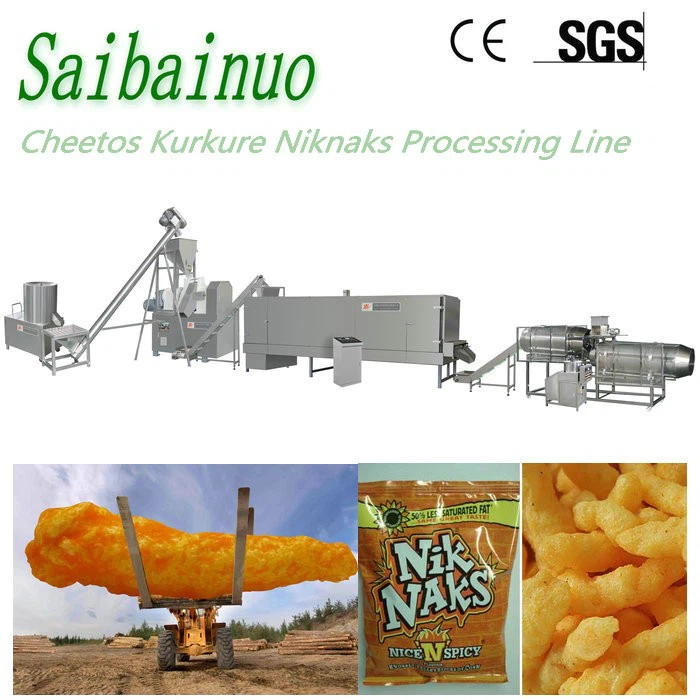

Sample Picture
Delivery
All machines will be wrapped by plastic bubble film on the surface first, then the spare parts will be packed in wooden case for long ship time. Everything is as request and experience.
