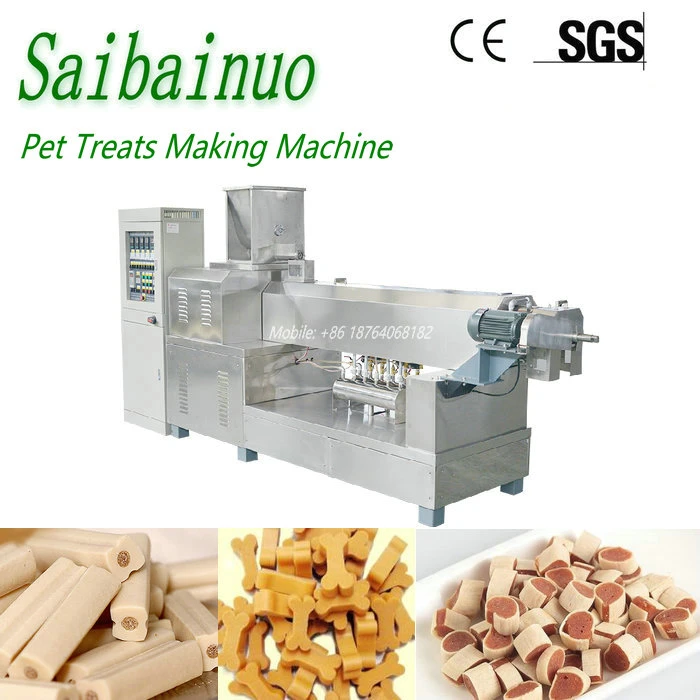

High power double color pet treatd/chews processing line

The pet treat chew making machine is the all-automatic and food grade processing line.

Dog treats food takes starch as raw materials with scientific configuration and was extruded from co-extruder, it can be made into many kind of shapes such as flake, stick. twist, bone,double color or core-filing etc. This kind of food not only provide protein,fat, vitamin, nutrition for dogs,but also satisfy the dog nature hobby. It has following features: strong teeth, cleanmouth and teeth, scientific nutrition proportion and easy digest. The processing line has reasonable design, flexible
configuration and strong adaptability.

Pet Treats Line

Main Equipment

1.Mixer

This equipment mainly using for mixing raw material,waterand addictives, raw material mixed fast and evenly.

Power:4.5kw
Volume:50L
Rotate speed:360r/min
Material :stainless steel.

2.Screw conveyor

The main function of the machine is to transfer the mixed raw materials from the mixer to the feeding system of the single screwextruder.

Power: 0.75kw
Capacity:500kg/hour 3.Dimension:1600*300*2300mm
Quantity:1PC

3.Cooling Conveyor

A cooling conveyor is a conveying system that transports products from a single screw extruder to a cutting machine while also cooling or preventing overheating.

Power:1.4kw
Material:stainless steel
Mesh belt width: 600mm

4.Cutting machine

Cut and shape the cooled food according to the predetermined size and size

Power:1.5kw

Cutting capacity:150kg/h
Material:stainless steel

5.Hoister

The cut molding product is transferred to the dryer.

Power: 0.75kw

Capacity:≥500kg/h

Dimension : 2000*400*2500mm

6.Single screw extruder

DLG100 Pet treats

Specification

Model	Installed power	Out put	Size
DLG100 Single screw extruder line	110kw	100-120kg/h	2200025002500mm
DLG150 Single screw extruder line	150kw	200-250kg/h	2200025002500mm

Features

The pet chewing food processing line is a professional system used to produce high-quality pet chewing food. This processing line aims to ensure the production accuracy, efficiency, and consistency of the final food. It includes a series of collaborative machines and equipment that transform raw materials into finished products.

The first characteristic of the pet chewing production line is its high level of automation. The equipment used in the production line is designed to improve efficiency and can perform multiple functions simultaneously. The machine can also be controlled through a central computer system to ensure the accuracy and accuracy of the production process. This helps eliminate errors and reduce waste, ensuring that products meet high quality and safety standards.

The second characteristic is that it is multifunctional, and the equipment used in the production line can be modified to producepet chewable food of different sizes, shapes, and flavors to meet the different needs of pets and their owners.

Detail of extruder

1,The gearbox is made of SKF bearings and has a shelf life of 10 years.
2,The control system uses ABB electrical components.
3,minutes cooking time to ensure pre-cooking effect.
4,Deep nitriding process guarantees the life of the screw and barrel.
5,Straight cutting method to ensure smooth surface.
