●The pet feed production line developed series different configuration according thecapacity and cost. ●The whole production line is reasonable in design and with high automatic.

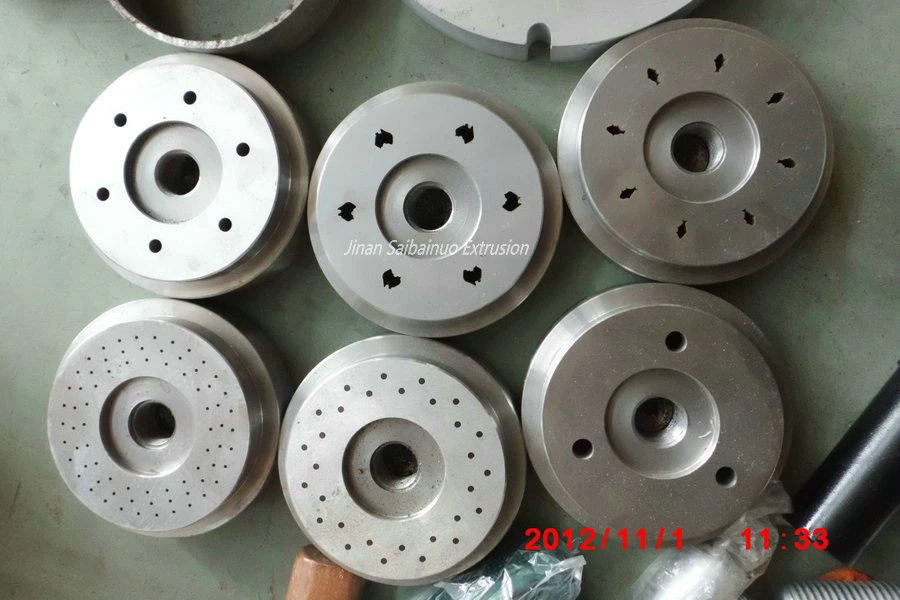

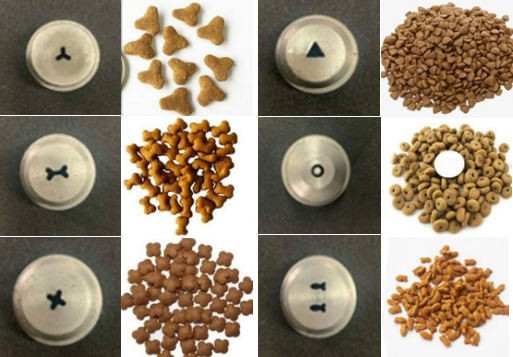

Mould for pet food extruder. By changing the mould you can get differet shapes pet food products
Raw Material of Pet food processing dog food making machine
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.can also add fresh bone, meat, etc.
Equipment list in the pet food production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
|
Name
|
Mixer
|
|
Usage
|
To mix the raw materials evenly, fast speed, no leakage.
|
|
Type
|
Vertical and horizontal type
|
|
Motor
|
3kw, 4kw, 7.5kw etc.
|
|
Capacity
|
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
|
|
Material
|
stainless steel, carbon steel
|
|
Name
|
Twin screw extruder
|
|
Usage
|
To extrude the raw materials and make them to the required shape and size of the pet food pellets by mould
|
|
Model
|
DSE65, 70, 75, 90, 95, 120, 135
|
|
Motor
|
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
Screw materials 38CrMoAl
stainless steel, carbon steel
|
Dry type twin screw extruder for pet food
capacity from 100kg/h to 1 ton/h
Wet type twin screw extruder for pet food
capacity from 200kg/h to 10 ton/h
|
Name
|
Dryer (oven)
|
|
Usage
|
the expanded food go through the "s" passage, to be dried to increase the self life.
|
|
Type
|
electrical, steam, gas fired, diesel fired heating type
|
|
Model
|
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel, carbon steel
|
Electrical heating dryer
Gas or Diesel fired heating dryer
|
Name
|
Flavoring machine
|
|
Usage
|
To mix the oil and flavors on the surface of the pet food
|
|
Type
|
single and double flavoring drum
|
|
Motor
|
0.75kw
|
|
Capacity
|
100kg/h to 10 ton/h
|
|
Material
|
stainless steel
|
|
Name
|
Packaging machine
|
|
Usage
|
To pack the pet food with required weight
|
|
Type
|
Automatic
|
|
Flowing Process
|
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
|
|
Weight range
|
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
|
|
Material
|
stainless steel, carbon steel
|
Pet Food Machine Model and Equipment parameters:
According to the different output, the production line also has a variety of configurations to meet the needs of different customers. The production equipment can adjust the raw materials, temperature, moisture and other process parameters to make the product have the characteristics of novel shape, unique taste, rich nutrition, and delicate tissue, which is suitable for different pet tastes. The production line is widely applicable to the production of dog, cat, fish, shrimp, fox and various pet feeds, and is an ideal choice for different manufacturers
|
model |
screw feeder |
pulverizer |
screw feeder |
mixer |
vacuum feeder |
storage bin |
Modulator |
|
power(kw) |
1.1 |
25 |
1.1 |
3 |
4 |
0.2 |
2.2 |
|
size(m) |
3.2×0.6×0.7 |
4×3.5×3.5 |
3.2×0.6×0.7 |
1.8×1.2×1.8 |
0.8×0.5×2.5 |
1.7×1.5×5 |
1.9×1.1×2.2 |
|
model |
SLG85-II double screw extruder |
air conveyor |
7-layer 8 m oven |
middle elevator |
cooking oil spray machine |
double roller |
cooling conveyor |
|
power(kw) |
102 |
2.2 |
65 |
0.37 |
3.5 |
1.1 |
2.2 |
|
size(m) |
3.9×0.9×1.9 |
1.1×0.6×0.5 |
8.4×1.3×2.2 |
2.0×0.5×1.5 |
1.1×0.5×1.3 |
3.9×0.9×2.0 |
5.0×0.7×1.1 |
The dog food production line can divide into electrical type and steam type which according to the extruder heating method. The capacity can up to 100-5000kg/h. This production line can produce all kinds of products with different shapes by changing the mold as bone, heart, circular, triangle and others shapes. Also our customers can customized the mold to produce different shape and size dog feed.
Our company according to the pet food market demands to design and develop lots of models of pet food production line. According to the different capacity, we can provide all kinds of configuration production line for our customers.
This production line can produce the novel shape, unique taste, rich nutrition and delicate tissue pet feed according adjust the raw material, temperature, water and other technology parameter which can suitable for various pet taste.
If any need or any questions for our pet food machines, please do not hesitate to contact with us.
