dog cat extruder making pet feed food pellet make machine line
Pet food production lines are designed to efficiently produce high-quality pet food. They consist of a series of machines and processing equipment. This production line uses meat, grains, vegetables, etc. as raw materials to process them into nutritious and delicious pet food.
Flow Chart
Our engineer could design the layout drawing according to your dimension of the factory for the dog food machines
processe
|

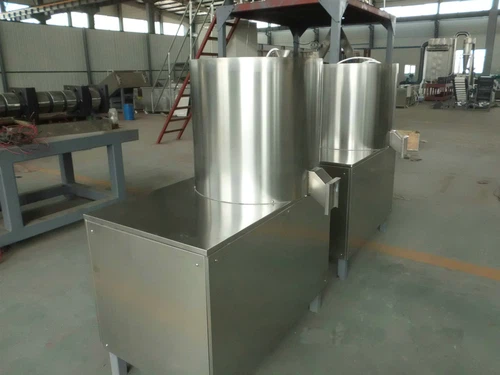

Name |
Big Mixer |
Small Mixer |
|
Installed Power |
7.5kw |
4kw |
|
Power Consumption |
6 kw |
3.2kw |
|
Output |
600kg/h |
400kg/h |
|
Size |
1.4x0.7x1.4m |
1x0.6x1.2m |
|
Name |
Screw conveyor |
|
Installed Power |
1.1kw |
|
Power Consumption |
0.88kw |
|
Output |
600 kg/h |
|
Size |
3M |
|
Rotate Speed |
350r/min |
|

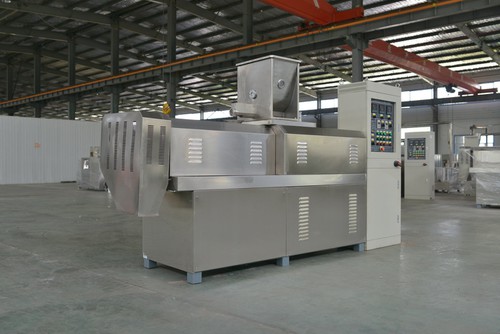

Name |
Double Screw Extruder |
|
Model |
SLG65,SLG70,SLG85,SLG95,etc |
|
Main Motor Power |
22kw,30kw,40kw,55kw,132kw,etc |
|
Screw Diameter |
65mm,70mm,72mm,85mm,95mm,etc |
|
Output |
100 kg/h-7000kg/h |
|

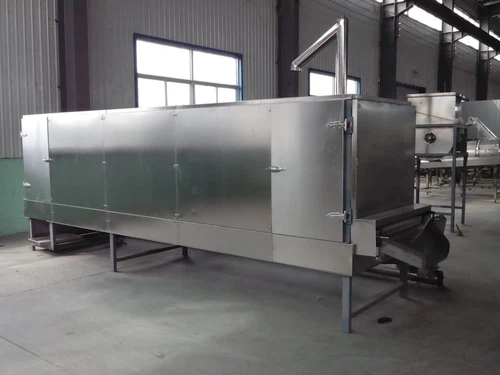

Name
|
Dryer
|
|
Model
|
KX-3-5D,KX-5-5D,KX-7-8D,etc
|
|
Heat Method
|
electricity,gas
|
|
Output
|
120 kg/h-3000kg/h
|
|
Material
|
stainless steel
|
Pet food sample picture
Factory Show

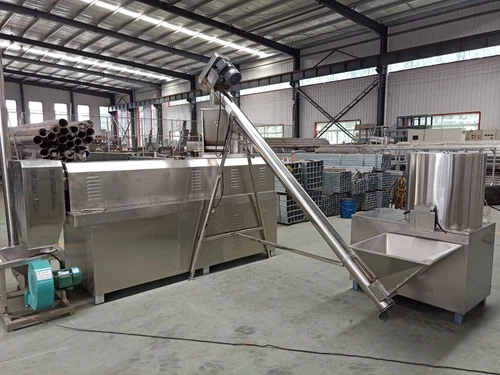

The twin screw extruder adopts a 20:1 aspect ratio and a stable screw combination technology, which can leverage the advantages of floating and settling aquatic feed production capacity. It produces seawater floating fish feed, with a production capacity 15~20% higher than similar models at home and abroad, and a power consumption of 23~25kW. h/t per ton;
The processing scope covers various high, medium, and low-grade formula floating materials, sinking materials, and slow sinking materials; Can produce small particles with 0.6mm mold hole floatability and 0.8mm mold hole sinkability; In recent years, through technological innovation, the H series twin screw extruder has effectively solved the problems of poor water stability, particle uniformity, and aesthetic appearance encountered in the production of low starch formulas, improved the feeding and digestion utilization efficiency of aquatic animals, and improved the growth performance and quality of aquatic animals;
♦Particle uniformity
Adopting fully kneaded screw technology, stable screw configuration, high-precision screw and inner sleeve, as well as dual template discharge device, to optimize the pressure distribution before the mold and ensure particle uniformity;
♦Good ripening effect of puffed particles
Equipped with an efficient three-axis quenching and tempering device with a unique water vapor co entry structure, it ensures full mixing of water vapor and materials. EDEM software simulation technology is used to partition the functions of the quenching and tempering device, optimize blade layout, improve material filling, extend effective quenching and tempering time, and improve the quenching and tempering effect;
♦Stable operation, safety and reliability, and low failure rate
The gearbox designed and processed according to European and American standards adopts 5-grade high-precision gears, equipped with brand bearings and oil seals, ensuring efficient transmission and stable and reliable operation. The new fully wear-resistant alloy screw has a lifespan of over 50000 tons.
FAQ
1.How to choose between a twin-screw extruder and a single screw extruder?
① The single screw extruder has a simpler structure, easier maintenance and operation, but lower processing capacity and limited adaptability.
② Twin screw puffing machines have a more complex structure, stronger processing capacity, and wider adaptability, making them the mainstream puffing machines currently available.
③ According to different processing requirements and raw material characteristics, it is necessary to choose an appropriate machine model to meet the requirements, taking into account both benefits and costs.
2. Is the operation of the twin-screw extruder complicated?
Our company has developed a fully automatic control system for twin-screw puffing machines, which can automatically add water, other liquids, and steam according to the feeding amount; Featuring a one click start function, the operation is simple and easy to learn.
3. What feed products can twin screw puffers produce?
The twin-screw puffing machine can produce floating, sinking, and slowly sinking fish feed, ornamental fish feed, puffed pet food, etc.
4.What are the vulnerable parts of the twin-screw extruder? How long is the lifespan?
The vulnerable parts of the twin-screw puffing machine mainly include screws, puffing chamber sleeves, cutters, templates, etc;
The spiral is made of high wear-resistant alloy material, with a lifespan of up to 5000 hours. The lifespan of the inch sleeve can reach 8000-10000 hours, and the lifespan of the template can reach 3000 hours; Additionally, our gearbox comes with a five-year warranty.
If you need a pet food production line, please contact us. We will provide the latest product information
