Automatic Pet Dog food machine Production Line can produce all kinds of pet food, including dog, cat, fox, bird and so on. automatic dry extruder pet food machine for dog uses twin-screw extruder, the whole work flow for Automatic Pet Dog food machine Production Line can be controlled exactly by parameter. Different raw material and nutrient elements can be added together according to advanced formula, so the final products are easy to digest.
If you have a need for custom industrial food processing equipment, please check out all of our food processing machines.
Key Features & Benefits
Versatile Production – Capable of producing diverse pet food formulas with customized characteristics.
Scalable Solutions – Available in both big-capacity and regular extruder units to suit different production needs.
High Efficiency & Space-Saving – The vertical structure optimizes workspace while maintaining high output.
Multifunctional Processing – Integrates blending, hoisting, conditioning, extruding, and shaping in a single unit.
Advanced Control System – User-friendly interface with all functions integrated into one control panel.
Production Capacities
Big Capacity Extruder Unit: 1000kg/h to 3000kg/h
Regular Extruder Unit: 150kg/h to 500kg/h
With double-screw extrusion technology, our system ensures consistent quality, improved digestibility, and enhanced nutritional value in pet food production. Whether for large-scale industrial operations or smaller production lines, our pet food processing machines offer reliable performance, flexibility, and efficiency.
Flow chart of pet food pellet making machine dog feed extruder production line cat feed making machine with good price
The general process: pulverizer→mixer→extruder→dryer→cooler→fuel injection machine→flavoring machine to make various shapes of particles.
Its main shapes are: triangle, steamed bun row, ellipse, bone shape, triangle quincunx shape, quadrangular quincunx shape, square and so on.The size of the particles is divided into adult dogs and puppies. Adult dogs are generally about twice the size of puppy food.
Finished Product for pet food pellet making machine dog feed extruder production line cat feed making machine with good price

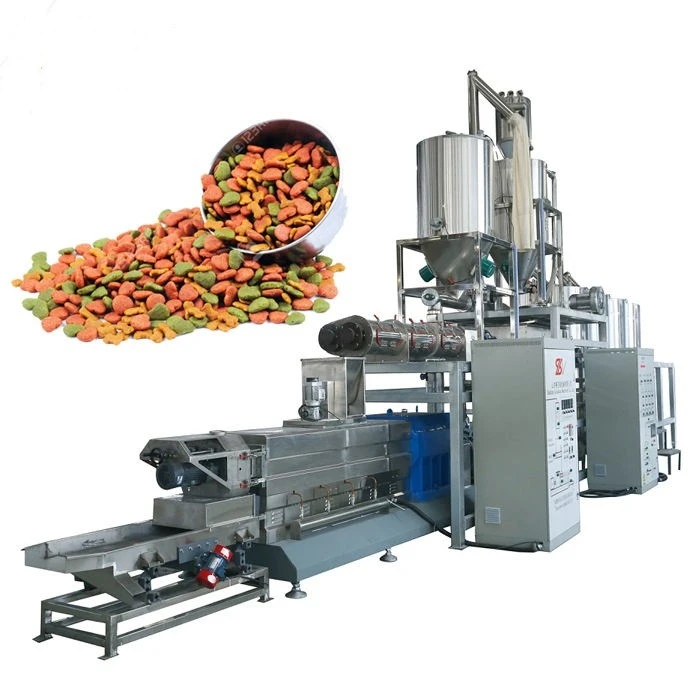

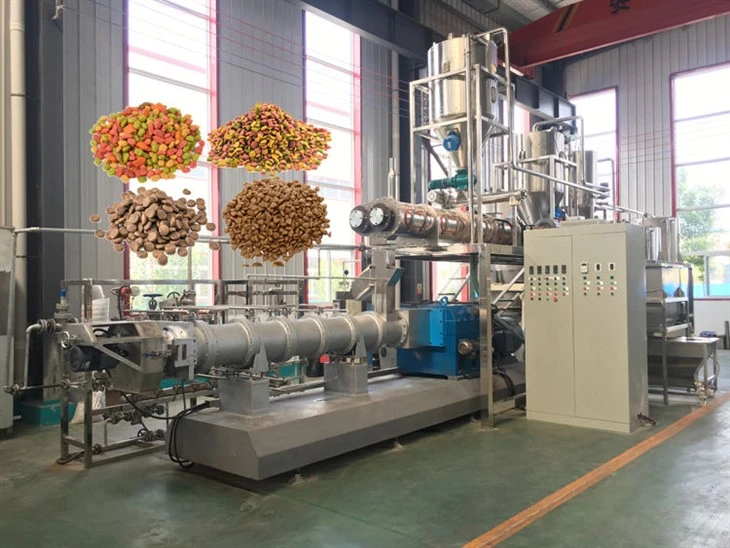

Double Screw Extruder Unit:
Motor: 55kw, 75kw etc.
Material: Screw materials 38CrMoAl
stainless steel, carbon steel
Pet feed extrudr unit consist of bucket elevator, Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller and operation platform. The extruder includes drive system, extrusion system, cutting system, heating system, lubricating system and extraction steam system.
Dryer:
Type: 5 layers 5 meters, 5 layers 8 meters, 7 layers 10 meters etc.
Heating source: electric, gas, steam, oil, diesel.
Material: stainless steel, carbon steel
1. Heat With Infrared Ray Heating Tube, Raise And Lower Down Temperature Quickly, Small Heat Inertia And High Heat Efficiency.
2. Adjustable Transit Speed Of Net Belt With Accurate Temperature Control Device. Sliding Board Bottom Of Dryer For Easy Cleaning.
Hot Wind Cycle Device Makes Heating Energy Equally In The Dryer
3. Double-Roller Chain And Chain Drive Make Stable And Smooth Running
Our factory is equipped with advanced production equipment and rich technical experience. The strong reputation of our brand is built on the collective efforts of every team member. With an experienced technical team and a well-established management process, we strictly adhere to quality management standards to ensure that every product meets international quality requirements. We are committed to providing our customers with stable, reliable, and high-quality products, always upholding excellent service to meet the needs of every client.
