The dog food production line can divide into electrical type and steam type which according to the extruder heating method. The capacity can up to 100-5000kg/h. This production line can produce all kinds of products with different shapes by changing the mold as bone, heart, circular, triangle and others shapes. Also our customers can customized the mold to produce different shape and size dog feed.
1. Product Description of Extruders for pet food processing
Pet feed production lines are increasing with the increase in pet varieties. Various pets vary from adults to children, and the requirements for pet food are getting higher and higher. According to different outputs, the production line also has a variety of configurations to meet the needs of different customers. The production equipment can adjust the process parameters such as raw materials, temperature, moisture, etc., so that the product has the characteristics of novel shape, unique taste, rich nutrition, delicate texture, etc., suitable for the taste of different pets. This production line is widely used in the production of various pet feeds such as dogs, cats, fish, shrimps, foxes, etc., and is an ideal choice for different manufacturers.
2. Process flow
Raw material preparation → powder mixing → conveying → extrusion → conveying → drying → screening → oil spraying → seasoning → cooling → (packaging)
3.Technical parameter of Extruders for pet food processing
Model
Output
Power
Dimension
SLG65-III
100-150KG/H
80KW
22*3*4m
SLG70-II
200-250KG/H
120KW
22*3*4m
SLG85-II
400-600KG/H
200KW
30*3*4m
SLG95
1-1.5TON/H
340KW
70*6*6m
SLG120
2-3TON/H
Customized
Customized
SLG135
4-5TON/H
Customized
Customized
4. some parts of our Extruders for pet food processing

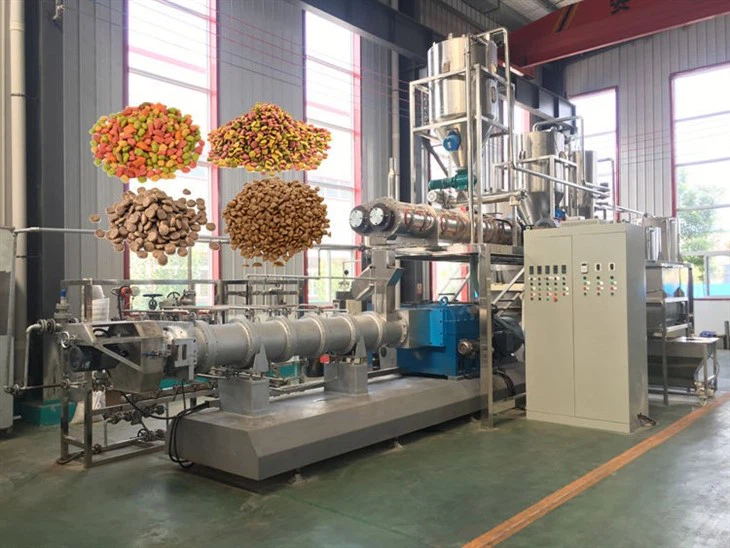

Twin Screw Extruder
They extruder grain powder into pet food by high temperature and pressure.The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.
1. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer.
2. Adopting the building block structure and combining willingly according to the different demand.
3. The forced lubrication system, so that it can guarantee the equipment transmission life longer
4. Auto-temperature control system; make the temperature controlling more direct viewing and the parameter more precise.
5. Self-cleaning, when stopping, it can be cleaned without disassembling.
Hoister
1.Conveying the product from Extruder to Roller sifter.
2.Mosaic design of the conveyor belt.You could change any piece of the belt,no need to change all the belt.
3.Parallel design at the below of the hoister.Avoid the product fall down when machine running.
Multi-layer dryer
1. Compact in frame, facilitated in operation, low occupation of space and high heating efficient.
2. Stainless steel is used on conveying belt, oven cover to guarantee the food safe.
3. Rock wool plates are used for heat preservation.
4. The drying time for the product can be adjusted by a frequency inverter.
5. Forced lubrication system to lengthen the bearing life.
6. Electricity heating by infrared heating pipe by electricity.
Name:Flavouring roller
By the turning of the tumbling box, it can coat the products with even layer of the coating flour;
Increase the quantity of the flour on the products surface. It causes the obvious scaly food surface.
It is used for the massive products flouring and breading processing.
If you need more details of our our Extruders for pet food processing , contact me now please
