Breakfast Cereal Machine Corn Flakes Making Equipment

Corn flakes are a new type of breakfast food with high nutritional value. Mainly made from grains as the basic raw material and processed through steaming or extrusion processes, the shape can be in the form of granules, flakes, or animal shapes. Its prominent feature is that it contains rich complex carbohydrates and dietary fiber, while corn flakes and breakfast cereals can enhance many trace elements, such as vitamins and minerals.

Send Inquiry

Chat Now

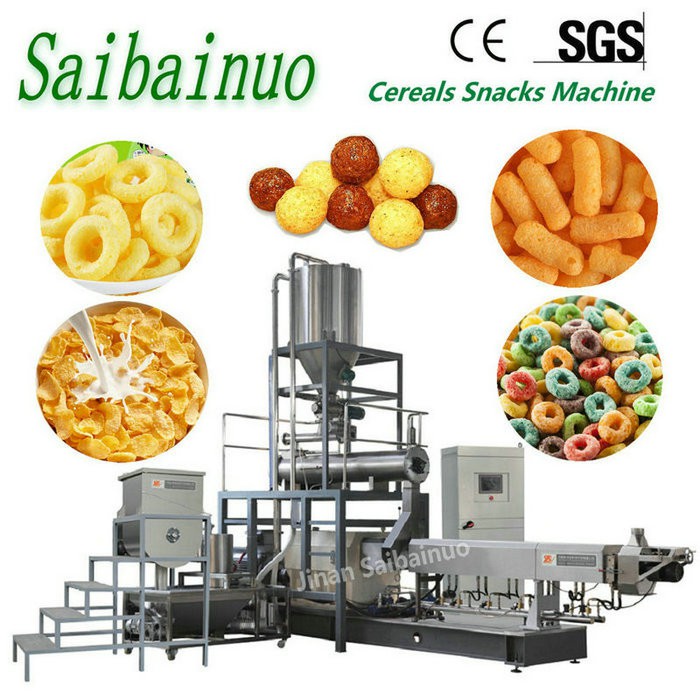

Breakfast cereal machine corn flakes making equipment

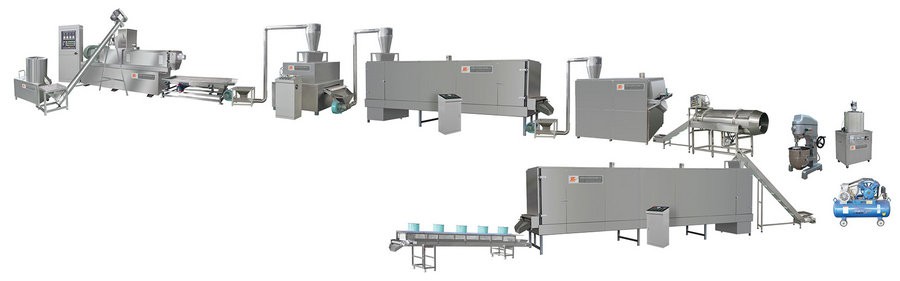

Breakfast Cereals Corn Flakes Line

Product Introduction

Product Name	Automatic Industrial breakfast cereal machine corn flakes making equipment breakfast cereal manufacturing plant
Material	Food Grade Stainless Steel
Heating Source	Electricity or gas or diesel or steam
Standard	The motor can choose Siemens, Delixi or delta combine with good brand electrcity parts
Function	Puff Corn Snacks Machinery
Type	Twin screw extruder machine
Application	Puffed snack food extruder machine

Specification of Standard Configuration

Model	SLG-65	SLG-70
Capacity	120-150kg/hr	200-250kg/hr
Power Consumption	90KW	140KW
Dimension	28x 1.2 x 2.0m	30 x 1.5 x 2.0m
Operating Worker	1-2	2-3

Flow chat of corn flakes processing machine

Mixer---Screw conveyor---Twin screw extruder---Vibrating feeder---Drum type dryer---Air conveyor---Flaking machine---Airconveyor---Dryer---Hoister---Vibrating feeder---High temperature inflated line oven---Flavoring line---Dryer--- Cooling machine.

1.Flour mixer : to mix various raw materil evenly.

2.Screw conveyor : to convey raw material to extrude

3.Twin/Double screw extruder :to extruder and cook the raw material into different shapes breakfast cereal

4.Vibrating machine: to spread the products and cool it quickly.

5.Air conveyor: to convey the food to the next machine

6.Roller dryer:to dryer the moisture of the surface.

7.Flakes presser: to press the particles into thin flakes (its size of flakes can be adjusted)

8.Oven: to dryer the products.

9.High Vibrating spreader:to spread the flakes and snacks food and cool it quickly.

10.Belt conveyor: to elevate the snacks food to the next machine

11.High temperature oven: to use hot air to dry the snacks food.

12.Coating line: to spray flour ,sugar oil and other seasons on the food to get delicious food.

13.Extending drying oven: to dry the corn flakes after it being coated sugar.

14.Cooling conveyor: to cool down the temperature of products and ready for packing.

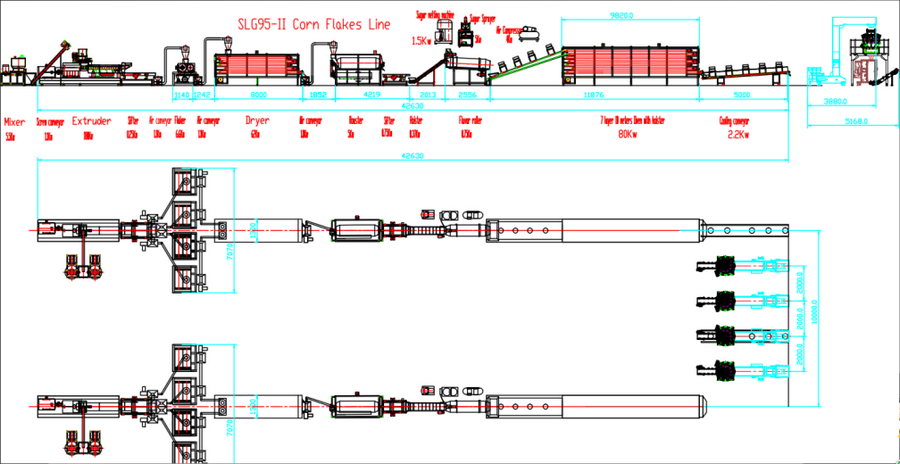

Layout

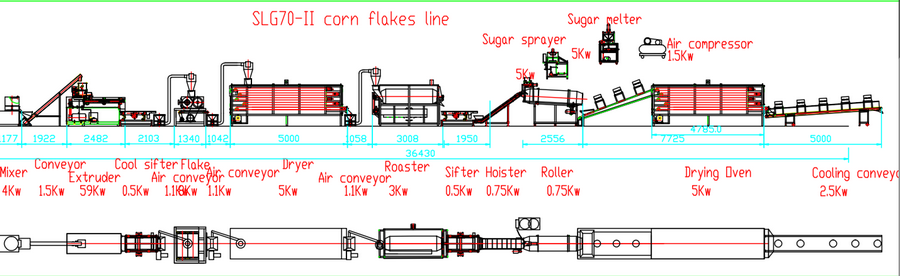

layout 01900

We will design the layout of the production line according to the area of the customer's factory

Sample

breakfast cereals10

Machine parameters

Model	Installed power	Actual power	Output	Dimension
SLG65	35kw	22kw	150kg/h	31.11.95m
SLG70	50kw	37kw	250kg/h	3.31.12.25m
SLG85	97kw	75kw	500kg/h	3.581.042.05m
