The corn grinder is one kind universal pulverizer, it can not only be used for many kinds grains, such as corn, rice, soya, etc, but also can be used for chemical, pharmaceutical, food and other industries of the material crushing.
Working principle:

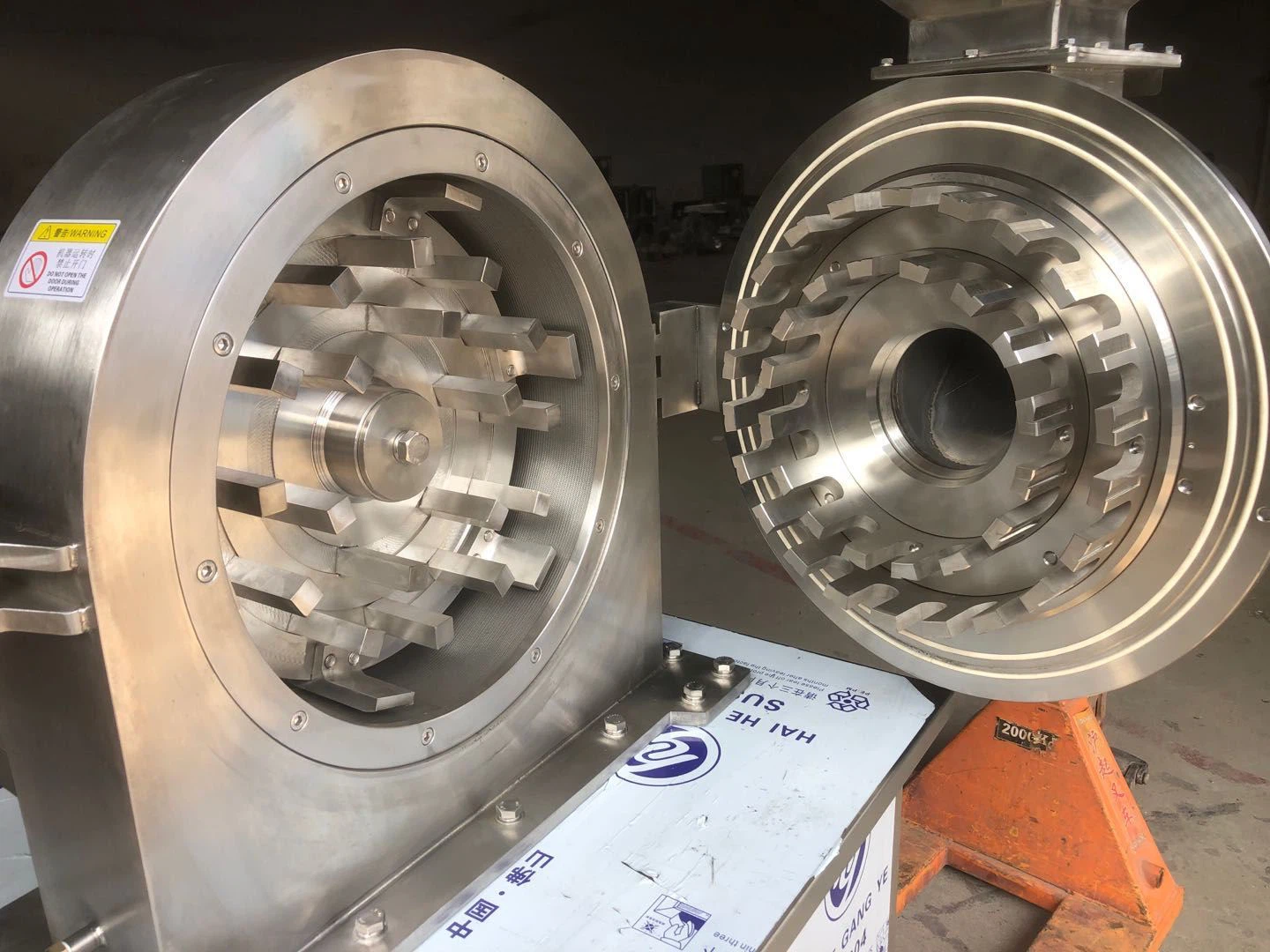

The Grinder makes use of the relative movement between the movable tooth disc and the fixed tooth disc, so that the material is crushed by the impact of the tooth disc, friction and the impact of the material between each other.
The grinding fineness is obtained by changing the screen mesh of different aperture.
Model | Capacity kg/h | speed of mainshaft r/min | Feed particle size mm | Grinding fineness mesh | Power | Dimension |
15 | 10-50 | 6000 | 10 | 20-150 | 2.2 | 550*400*850 |
20 | 60-150 | 4500 | 10 | 20-150 | 4 | 550*600*1250 |
30 | 100-300 | 3800 | 10 | 20-150 | 5.5 | 600*700*1450 |
40 | 160-800 | 3400 | 10 | 20-150 | 7.5 | 800*900*1550 |
60 | 300-1000 | 2800 | 15 | 20-150 | 15 | 900*900*1880 |
80 | 400-2000 | 2000 | 15 | 20-150 | 22 | 1100*950*1960 |
100 | 500-3000 | 1500 | 15 | 20-150 | 30 | 1350*1000*2100 |
