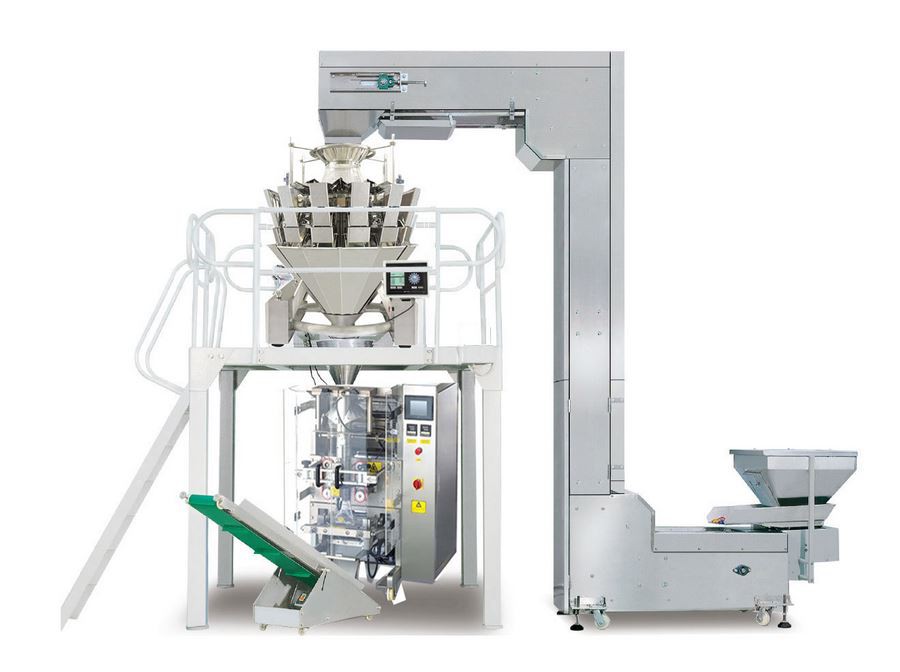

This automatic filling weighing and packaging machine is suitable for packing granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc.
Technical parameters:
Model | ZEL-420W |
Packing speed | 5-60 bags/min |
Packing volume | 1000ml |
Making bag size | L: 60-300mm, W: 80-200mm |
Film width | ≤ 420mm |
Thickness of film roll | 0.04-0.09mm |
Pulling film type | Double belt pull film |
Air consumption | 0.8Mpa, 0.5m³/min |
Packing accuracy | ≤ ±1% |
Power | 2.5 KW |
Power supply | AC220V, 50/60Hz |
Seal type | Pillow seal, Gusset bag, Block bottom bag |
Main Features
1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7 inch touch screen, easy operation and multiple language for choice.
3. Imported PLC system, machine performance is stable and easy for parameters adjusting.
4. With a memory function for storage ten sets of parameters. Easy to change packing product.
5. Separate PID temperature controller, suitable for various packing materials.
6. Multi-union roll film pulling system make film running more smooth.
7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
